Navigation

Structure

PyQt Fluent Widgets provides a side navigation class NavigationInterface. You can use it with QStackWidget and put them in QHBoxLayout. Examples are available at https://github.com/zhiyiYo/PyQt-Fluent-Widgets/tree/master/examples/navigation2.

NavigationInterface contains NavigationPanel which is used to place navigation menu items. All navigation menu items should inherit from NavigationWidget and you can add them to the panel by calling NavigationInterface.addWidget() or NavigationPanel.addWidget(). PyQt-Fluent-Widgets implements subclass NavigationPushButton and provides a convenient method NavigationInterface.addItem() to add it to the panel.

If you want to customize a navigation menu item, you should inherit the NavigationWidget and rewrite its paintEvent() and setCompacted()(optional). Here an example shows how to create an avatar item.

from qfluentwidgets import NavigationWidget


class AvatarWidget(NavigationWidget):
    """ Avatar widget """

    def __init__(self, parent=None):
        super().__init__(isSelectable=False, parent=parent)
        self.avatar = QImage('resource/shoko.png').scaled(
            24, 24, Qt.KeepAspectRatio, Qt.SmoothTransformation)

    def paintEvent(self, e):
        painter = QPainter(self)
        painter.setRenderHints(
            QPainter.SmoothPixmapTransform | QPainter.Antialiasing)

        painter.setPen(Qt.NoPen)

        if self.isPressed:
            painter.setOpacity(0.7)

        # draw background
        if self.isEnter:
            c = 255 if isDarkTheme() else 0
            painter.setBrush(QColor(c, c, c, 10))
            painter.drawRoundedRect(self.rect(), 5, 5)

        # draw avatar
        painter.setBrush(QBrush(self.avatar))
        painter.translate(8, 6)
        painter.drawEllipse(0, 0, 24, 24)
        painter.translate(-8, -6)

        if not self.isCompacted:
            painter.setPen(Qt.white if isDarkTheme() else Qt.black)
            font = QFont('Segoe UI')
            font.setPixelSize(14)
            painter.setFont(font)
            painter.drawText(QRect(44, 0, 255, 36), Qt.AlignVCenter, 'zhiyiYo')

Now let's take a look at the parameters required for the addWidget() methed:

def addWidget(
    self,
    routeKey: str,
    widget: NavigationWidget,
    onClick=None,
    position=NavigationItemPosition.TOP,
    tooltip: str = None,
    parentRouteKey: str = None
)

As you can see, this method requires four parameters:

• routeKey: A unique name for the widget to be added. You can consider the sub interface in the QStackWidget as a web page, and the routeKey is the url of the web page. When you switch between sub interfaces, NavigationPanel will add a routeKey to the navigation history. When you click the return button, the routeKey at the top of the navigation history will pop up. If there are other routeKeys in the history at this time, PyQt-Fluent-Widgets will switch to the corresponding sub interface corresponding to current top routeKey. Otherwise, it will switch to the sub interface corresponding to defaultRouteKey, so you should call NavigationInterface.setDefaultRouteKey() before running app.
• widget: The widget to be added to panel.
• onClick: Slot function connected to the widget's clicked signal. If you want to switch sub interfaces when clicking widgett, it is recommended to write this slot function as lambda: self.stackWidget.setCurrentWidget(self.xxxInterface) .
• position: Where to add the widget to the panel. The following values are available:
  • NavigationItemPosition.TOP: add widget to the top layout of panel.
  • NavigationItemPosition.SCROLL: add widget to the scroll layout of panel. You can scroll the widgets in scroll layout When there are too many menu items.
  • NavigationItemPosition.BOTTOM: add widget to the bottom layout of panel.
• tooltip: The tooltip of menu item.
• parentRouteKey: The route key of parent menu item, the widget of parent item must be the instance of NavigationTreeWidgetBase

Display mode

The navigation panel has four display modes:

• NavigationDisplayMode.EXPAND: An expanded left pane on large window widths (1008px or greater).

• NavigationDisplayMode.COMPACT: A left, icon-only, nav panel on medium window widths (1007px or less).

• NavigationDisplayMode.MENU: An expanded left menu (1007px or less).

• NavigationDisplayMode.MINIMAL: Only a menu button on small window widths (you should add and manage the menu button to main window by yourself like navigation3 does).

If you call NavigationInterface.setExpandWidth(), the large window width (1008px) will change accordingly.

More examples

Here is an another style of navigation interface, and its corresponding example program is available at https://github.com/zhiyiYo/PyQt-Fluent-Widgets/tree/master/examples/navigation.

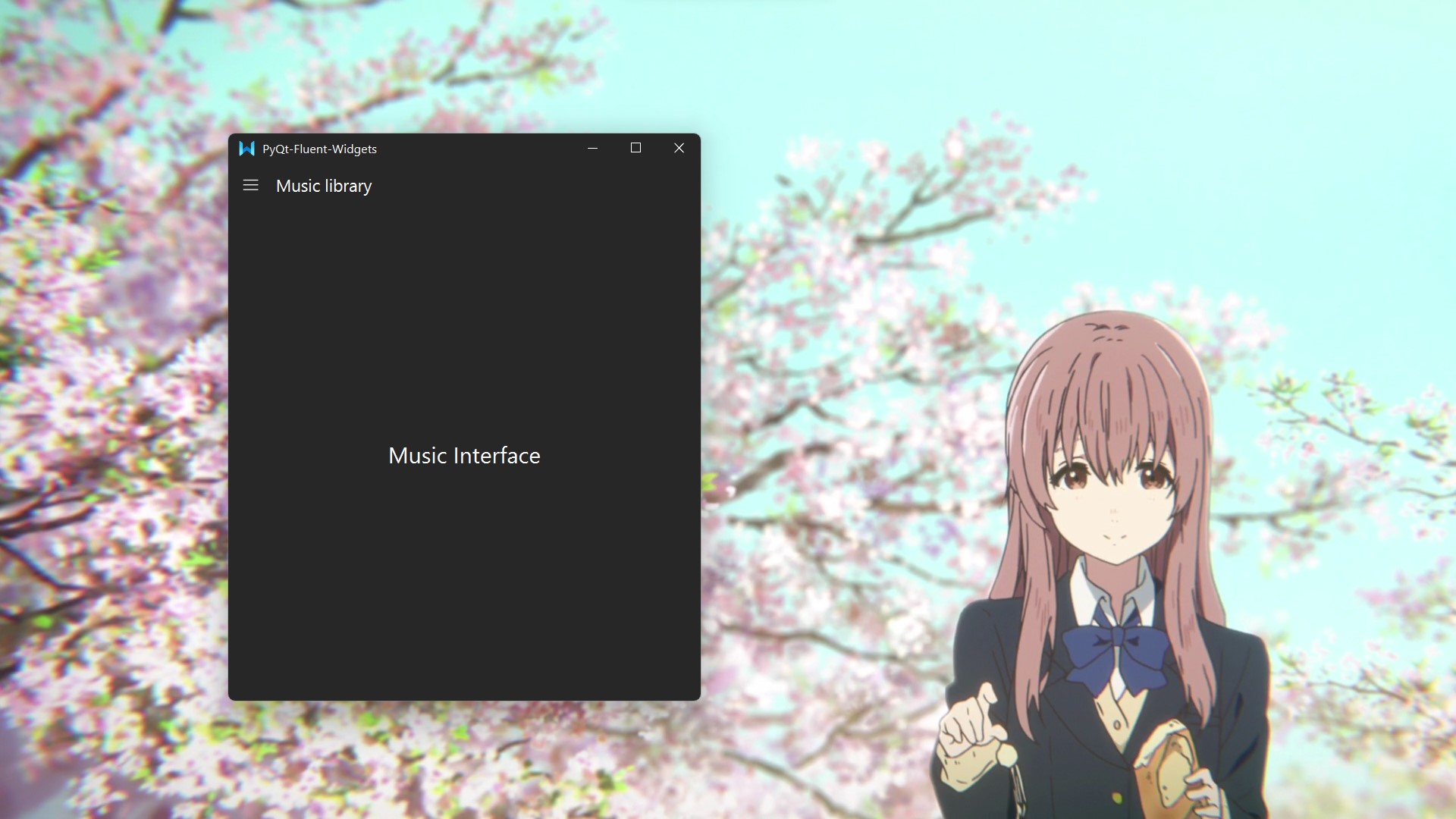

Minimal display mode navigation interface is available at navigation3.
